Kilncare IKON V61X Top Load Pottery Kiln
Kilncare IKON V61X Top-Loading Pottery Kiln – 61L High-Temperature Kiln
A high-performance, top-loading pottery kiln designed for studios requiring higher firing temperatures, advanced insulation, and professional-grade construction.
The Kilncare IKON V61X Top-Loading Pottery Kiln is engineered for ceramicists who require higher firing temperatures, improved efficiency, and robust construction for regular studio use. Delivering professional performance up to 1315°C (Cone 11), the V61X is ideal for earthenware, stoneware, and porcelain firing in demanding studio and educational environments.
With a 61-litre chamber capacity, the IKON V61X offers generous internal space while maintaining a compact external footprint. Powered by a 5 kW system and designed for single-phase electrical connection, this kiln is intended for studios ready to step beyond plug-in kilns and into higher-output, professional firing capability.
Thermal efficiency is central to the V61X design. The kiln features triple-layer insulation using lightweight insulation bricks, combined with high-density non-ceramic fibre and Micropore materials to maximise heat retention and reduce running costs. A double-layer insulated floor further minimises heat loss, supporting consistent and even firing results across the chamber.

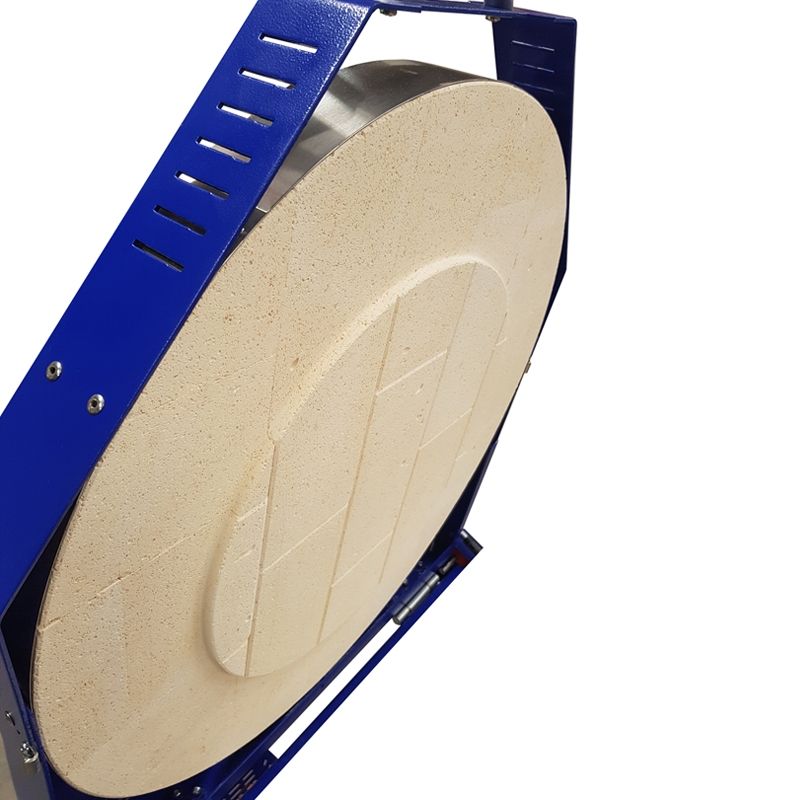

Built for long-term reliability, the kiln incorporates a thick steel, skeleton-based frame that absorbs movement during lid operation, paired with a 316-grade brushed stainless steel chamber and lid wrap for durability and corrosion resistance. A double gas-sprung lid provides smooth, controlled opening and closing, improving safety and ease of use during loading and unloading.

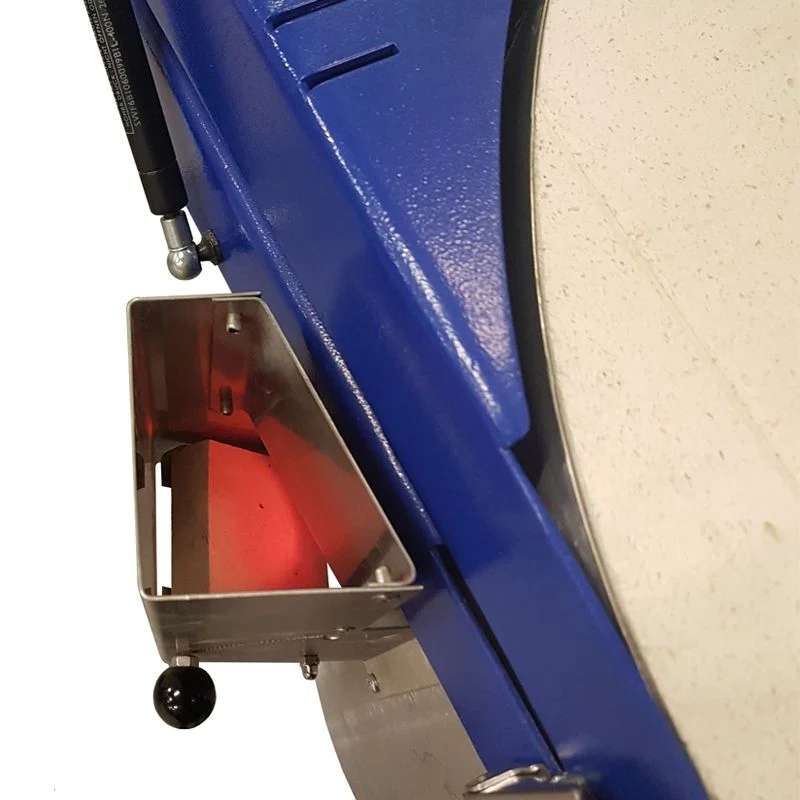

Airflow and ventilation are carefully managed through a lower inlet port designed to prevent blockages and a high outlet port with a multi-positional shutter, allowing controlled air movement throughout the firing cycle. Accurate temperature measurement is ensured by a 115 mm R-type thermocouple, while the Kilncare triple lid seal system minimises heat leakage and supports precise temperature control.
The IKON V61X is supplied with the KCR32C digital controller as standard. This advanced controller offers 32 fully adjustable programs, each with 32 segments, enabling precise control over ramp rates, soak times, and cooling profiles. Additional features include overheat protection, segment forwarding, delayed start, power usage monitoring, °C/°F display selection, and keypad locking. Optional Wi-Fi connectivity allows remote monitoring and firing management via the Kilncare GATEway.

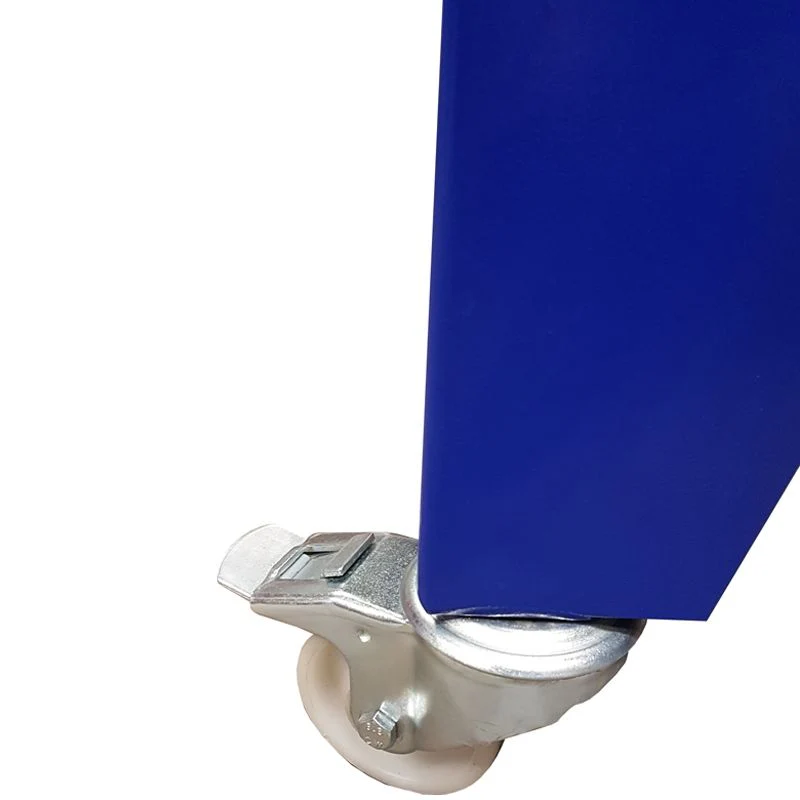

Each kiln is supplied with a stand and castors for studio mobility providing a complete, professional firing solution from day one.
Key features
-
61-litre top-loading pottery kiln
-
Maximum firing temperature of 1315°C (Cone 11)
-
5 kW single-phase kiln for higher-output firing
-
Triple-layer insulation for improved efficiency
-
High-density fibre and Micropore insulation system
-
Double-layer floor insulation
-
Dual circuit safety and overfire protection
-
Double gas-sprung lid for smooth operation
-
Controlled airflow via inlet and outlet ports
-
KCR32C digital controller included
-
Optional Wi-Fi controller upgrade available
-
Supplied with stand, castors.
Specifications
| Feature | Detail |
|---|---|
| Model | IKON V61X |
| Internal Size | 41.6 cm (Ø) × 44.5 cm (H) |
| External Size | 72.5 × 75 × 89 cm |
| Capacity | 61 litres |
| Weight | 105 kg |
| Power | 5 kW |
| Current | 20.5 A |
| Voltage | 230 V |
| Maximum Temperature | 1315°C |
| Thermocouple | 115 mm R-type |
| Controller | KCR32C (Wi-Fi optional) |
| Electrical Supply | Single phase – electrician connection required |
| Lead | 2 m |
Who it’s for
-
Professional ceramic studios requiring higher firing temperatures
-
Artists working with stoneware and porcelain
-
Educational facilities with dedicated kiln power supply
-
Studios upgrading from plug-in kilns
-
Users needing Cone 11 capability with advanced control
Optional Wi-Fi connectivity
The optional KCR32C Wi-Fi upgrade enables real-time remote monitoring and control through the Kilncare GATEway. Users can check firing progress from anywhere, access a personal firing library, save and name programs, record notes, and maintain detailed firing logs — ideal for repeatable, consistent results.
Warranty & support
The Kilncare IKON V61X is supplied with a 36-month manufacturer guarantee covering all parts except heating elements. Kilncare provides full technical support, with Kiln Crafts available to assist throughout ordering, installation, and ongoing use.
If you’re looking for a high-temperature, professional-grade pottery kiln with advanced insulation and precise control, the Kilncare IKON V61X delivers reliable Cone 11 performance in a robust, studio-ready design.
